600W battery charger

Shenzhen SOY is specializing in RD, manufacturing and marketing of power supply products, which is a Power adapter manufacturer focus on power adapter including ac dc power adapter,600W battery charger and other switching power adapters.

Product description

Product Details

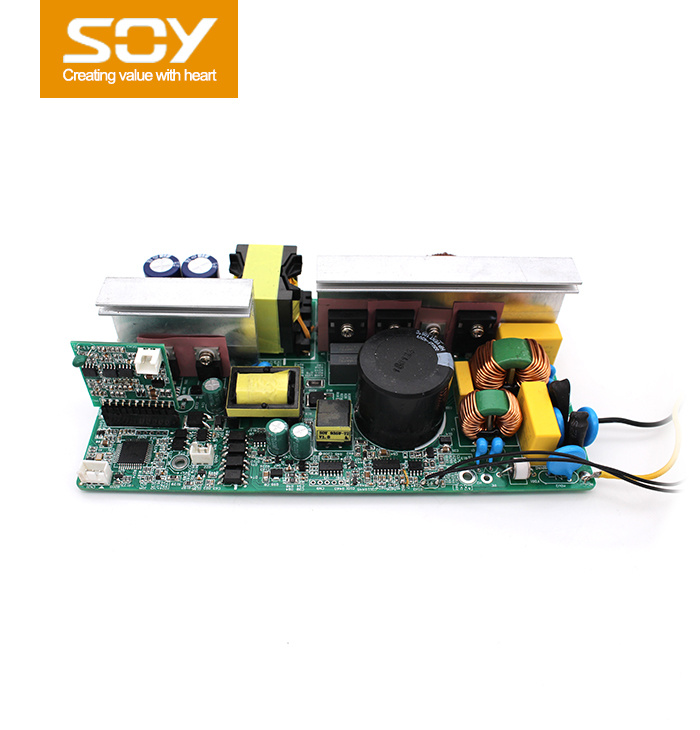

600W battery charger

The charger voltage input range is 176-275VAC AC input, single 58.8Vdc output, with PFC active power factor correction. This machine is equipped with a single-chip microcomputer to communicate with the monitoring unit. The parameters in the machine can be set by or adjusted by the upper-level monitoring unit through the RS485 interface. It has input over-voltage protection, output over-current protection, output over-voltage protection, output short-circuit protection, over-temperature protection and warning functions.

Specification data
Rated input voltage	220 Vac
AC input voltage range	176-275 Vac
Output power	600 W
Output voltage range	48-60 Vac
Rated output voltage	58.8 Vdc
Output current	10 A
Input current max	6 A
Power factor	≥0.98
Product efficiency	≥92%
Start time	8 s
Standby power consumption	≤1 W
Ripple	500 mV
Size	192 x 104 x 50 mm

Lead-time: 30-35 days after the order be confirmed, 35-40 days for the first order.

Application: battery pack...

Environmental conditions

Reliability requirements
1. MTBF: (standards, ambient temperature, load requirements) in accordance with the requirements of the Ministry of Posts and Telecommunications YD/T682-94 for superior products of communication rectification equipment. The MTBF (Mean Time Between Failure) ≥ 50,000 h. The product has to withstand overload, overheating, to change the external environment such as sudden voltage changes.

2. Component selection: components should be selected from famous brand manufacturers with stable quality, and the electrical stress and temperature stress of the components should be adjusted.Derating appropriately, anti-transient design for key components to ensure the reliability of components.

3. Thermal design: The system adopts forced air cooling and a reasonable layout inside the module to reduce the temperature rise of components.

4. Environment-resistant design: The product has strong environmental adaptability, and the temperature and humidity can basically meet the storage requirements of all regions in the country (-20~50℃), the use requirements under simple protection conditions (-20-50℃), can meet the storage and use requirements from cold climate to hot and humid climate.

5. Immunity to electromagnetic environment: Fully consider the complexity of the power grid, improve the product's resistance to electromagnetic environment interference, and make reasonable use of it in the design, use shielding, grounding, transient protection and other design methods to improve the anti-interference ability.
